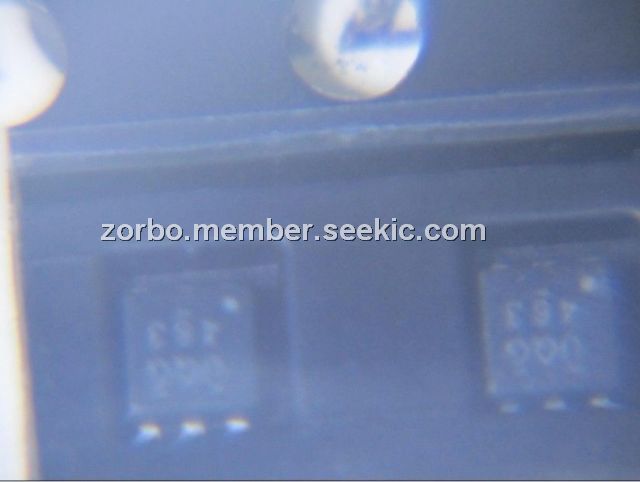

S-8365AABBA-I6T1U2

Product Summary

The S-8365AABBA-I6T1U2 is a CMOS step-up switching regulator controller which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a timer latch short-circuit protectioncircuit, a PWM control circuit. With an external low-ON-resistance Nch Power MOS, this product is ideal for applications requiring high efficiency and a high output current. The S-8365AABBA-I6T1U2 efficiently works on voltage’s condition of large I/O difference due to the PWM control circuit linearly varies the duty ratio to 90%. The applications of the S-8365AABBA-I6T1U2 include MP3 players, digital audio players, Digital cameras, GPS, wireless transceiver, Portable devices.

Parametrics

S-8365AABBA-I6T1U2 absolute maximum ratings: (1)VDD pin voltage, VDD: VSS -0.3 to VSS +6.0 V; (2)FB pin voltage, VFB: VSS -0.3 to VDD +0.3 V; (3)EXT pin voltage, VEXT: VSS -0.3 to VDD +0.3 V; (4)ON/OFF pin voltage, VON / OFF: VSS -0.3 to VDD +0.3 V; (5)CSP pin voltage, VCSP: VSS -0.3 to VDD +0.3 V; (6)Power dissipation, PD: 400 mW; (7)Operating ambient temperature, Topr: -40 to +85℃; (8)Storage temperature, Tstg: -40 to +125℃.

Features

S-8365AABBA-I6T1U2 features: (1)Low operation voltage: Start at 1.1 V (1 mA) guaranteed (in the product without UVLO function); (2)Input voltage range: 1.8 V to 5.5 V; (3)Oscillation frequency: 1.2 MHz, 600 kHz; (4)Reference voltage: 0.6 V±2.0%; (5)Soft start function: 7 ms typ.; (6)Low current consumption : 70μA typ. at switching off; (7)Duty ratio: Built-in PWM / PFM switching control circuit (S-8366 Series), 28% to 85% (1.2 MHz product); 28% to 90% (600 kHz product); (8)Shutdown function: Current consumption 1.0μA max. at shutdown; (9)External parts: Inductor, diode, capacitor, transistor; (10)Timer latch short-circuit protection circuit: Selectable with / without short-circuit protection circuit for each product Settable delay time by external capacitor (in the product with short-circuit protection); (11)UVLO (under-voltage lockout) function: Selectable with / without UVLO for each product; (12)Small packages: SNT-6A, SOT-23-5, SOT-23-6; (13)Lead-free product.

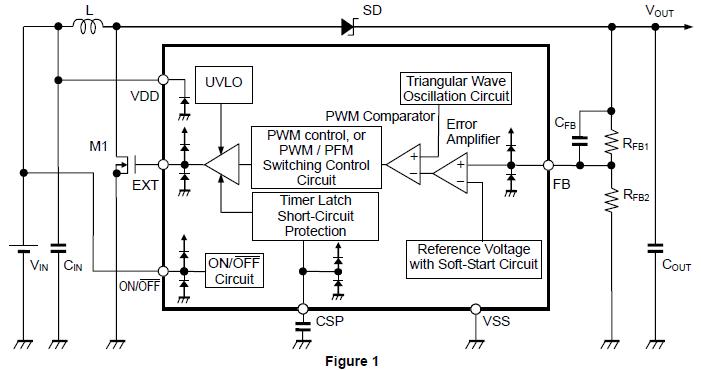

Diagrams
