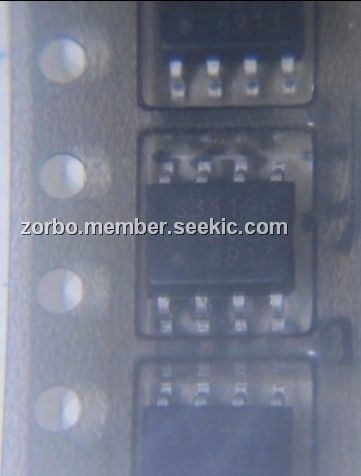

S-35190A-J8T1G

CMOS 3-wire real-time clock IC, 8-SOP, 1.3 V to 5.5 V, 0.25 μA, 32.768 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.60

PartNumber:: S-35190A-J8T1G

Brand:: Seiko Instruments Inc - SII | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Lin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:S-35190A-J8T1G
US $0.40 - 0.60
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

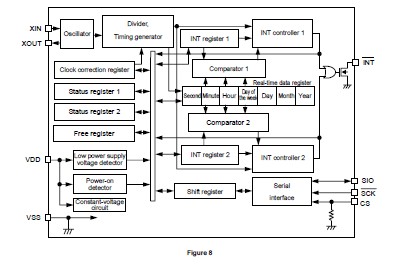

Product Summary

The S-35190A-J8T1G is a CMOS 3-wire real-time clock IC which operates with the very low current consumption and in the wide range of operation voltage. The operation voltage is 1.3 V to 5.5 V so that the S-35190A-J8T1G can be used for various power supplies from main supply to backup battery. Due to the 0.25 μA current consumption and wide range of power supply voltage at time keeping, the S-35190A-J8T1G makes the battery life longer. In the system which operates with a backup battery, the included free registers can be used as the function for user’s backup memory. The applications of the S-35190A-J8T1G include: Mobile game devices, Mobile AV devices, Digital still cameras, Digital video cameras, Electronic power meters, DVD recorders, TVs, VCRs, Mobile phones, PHS, Car navigation.

Parametrics

S-35190A-J8T1G absolute maximum ratings: (1)Power supply voltage VDD: VSS - 0.3 to VSS + 6.5 V; (2)Input voltage VIN: VSS - 0.3 to VSS + 6.5 V; (3)Output voltage VOUT: VSS - 0.3 to VSS + 6.5 V; (4)Operating ambient temperature Topr: -40 to +85 ℃; (5)Storage temperature Tstg: -55 to +125 ℃.

Features

S-35190A-J8T1G features: (1)Low current consumption: 0.25 μA typ. (VDD = 3.0 V, Ta = 25℃); (2)Wide range of operating voltage: 1.3 to 5.5 V; (3)Built-in clock-correction function; (4)Built-in free user register; (5)3-wire (MICROWIRE) CPU interface; (6)Built-in alarm interrupter; (7)Built-in flag generator during detection of low power voltage or at power-on; (8)Auto calendar up to the year 2099, automatic leap year calculation function; (9)Built-in constant voltage circuit; (10)Built-in 32.768 kHz crystal oscillator (Cd built in, Cg external); (11)Package : 8-Pin SOP (JEDEC), 8-Pin TSSOP, SNT-8A; (12)Lead-free product.
