Product Summary
The la4445 is a 5.5W 2-channel AF power amplifier.
Parametrics
la4445 absolute maximum ratings: (1)Maximum supply voltage, VCC max1, Quiescent (t=30s): 25V; (2)Maximum supply voltage, VCC max2, Operating: 18V ; (3)Surge supply voltage, VCC(surge), t≤0.2s: 50V ; (4)Maximum output current, IO, peak 1 channel: 3.5A ; (5)Allowable power dissipation, Pd max: 15 W ; (6)Operating temperature, Topr: 20 to +75℃; (7)Storage temperature, Tstg: 40 to +150℃.
Features
la4445 features: (1)Dual channels; (2)Output : 5.5WX2 (typ.); (3)Minimun number of external parts required; (4)Small pop noise at the time of power supply ON/OFF and good starting balance.; (5)Good ripple rejection : 46dB (typ.); (6)Good channel separation.; (7)Small residual noise (Rg=0); (8)Built-in protectors.

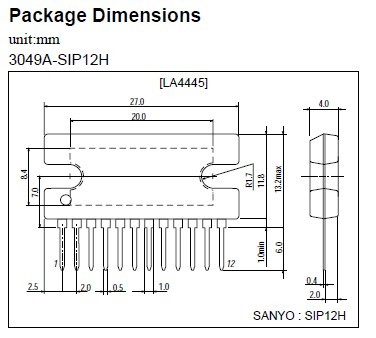

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LA4445 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
