Product Summary

The TLE4226G is an integrated, sixfold low-side power switch with power limiting of the 0.5A outputs, shorted-load protection of the 50mA switches and Z-diodes on all switches from output to ground. The TLE4226G is particularly suitable for automotive and industrial applications.

Parametrics

TLE4226G absolute maximum ratings: (1)Supply voltage, VS: 1 to 10V; (2)Supply voltage load circuit, VQ1-6: 0.7 to 25V; (3)Input voltage, VIN1-6 , VPREFST: 0.7 to 20V; (4)Current at reverse poling, IQ5-6: 500mA; (5)Current at reverse poling, IQ1-4: 50mA; (6)Clamping current, IQZ5-6: 700mA; (7)Clamping current, IQZ1-4: 70mA; (8)Junction temperature, Tj: 40 to 150℃; (9)Storage temperature, Tstg: 55 to 125℃; (10)Supply voltage, VS: 4.75V.

Features

TLE4226G features: (1)Quad 50 mA outputs; (2)Dual 500 mA outputs; (3)Operating range VS = 5 V ± 5 %; (4)Output stages with power limiting; (5)Open-collector outputs; (6)Shorted load protected within operating range; (7)Clamp-diodes to ground; (8)Status signaling; (9)TTL-compatible control inputs; (10)Overtemperature monitoring; (11)Temperature range 40 to 125℃.

Diagrams

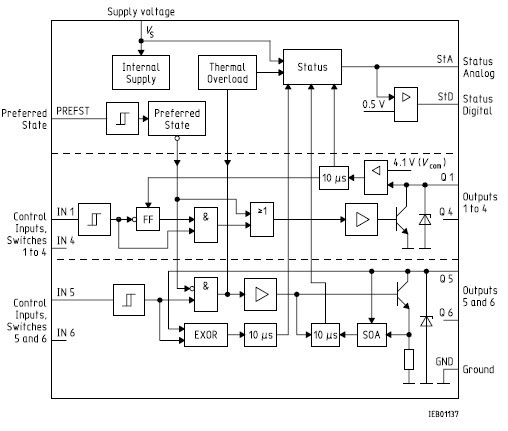

TLE4226G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLE4226G
TLE4226G
Infineon Technologies
Power Switch ICs - Power Distribution Intelligent Sixfold Low-Side Switch
Data Sheet
0-605: $1.22
605-1000: $1.03
1000-2000: $0.98
2000-5000: $0.94
