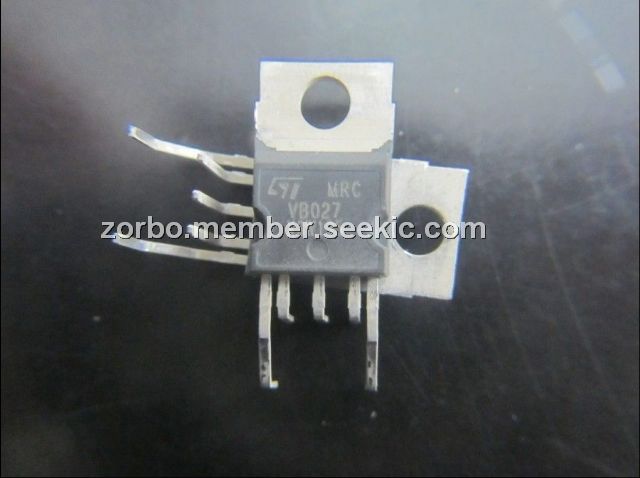

Product Summary
The vb027 is a high voltage power integrated circuit made using the STMicroelectronics VIPower technology, with vertical current flow power darlington and logic level compatible driving circuit. Built-in protection circuit for coil current limiting and collector voltage clamping allows the vb027 to be used as smart,high voltage, high current interface in advanced electronic ignition system.
Parametrics
vb027 absolute maximum ratings: (1)Collector voltage, HVc: Internally limited V; (2)Collector current, IC: Internally limited A; (3)Driving stage supply voltage, Vd: 7V; (4)Driving circuitry supply current, Id: 200mA; (5)Input voltage, VIN: 10V; (6)Junction operating temperature, Tj: -40 to 150℃; (7)Storage temperature, Tstg: -55 to 150℃.
Features
vb027 features: (1)primary coil voltage internally set; (2)coil current limit internally set; (3)logic level compatible input; (4)driving current quasi proportional to collector current; (5)double flag-on coil current.

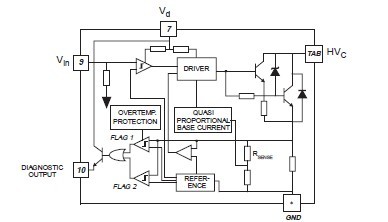

Diagrams
