Product Summary
The murs160t3g is a surface mount ultrafast power rectifier. It is ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.
Parametrics
murs160t3g absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 600V; (2)Working Peak Reverse Voltage, VRWM: 600V; (3)DC Blocking Voltage, VR: 600V; (4)Average Rectified Forward Current, IF(AV): 1.0A@ TL = 150℃, 2.0A@ TL = 125℃; (5)Non?Repetitive Peak Surge Current, IFSM: 35A; (6)Operating Junction Temperature, TJ: 65 to +175℃.
Features
murs160t3g features: (1)Small Compact Surface Mountable Package with J?Bend Leads; (2)Rectangular Package for Automated Handling; (3)High Temperature Glass Passivated Junction; (4)Low Forward Voltage Drop (0.71 to 1.05 V Max @ 1.0 A, TJ = 150℃); (5)AECQ101 Qualified and PPAP Capable; (6)SURS8 Prefix for Automotive and Other Applications Requiring; (7)Unique Site and Control Change Requirements; (8)Pb-Free Packages.

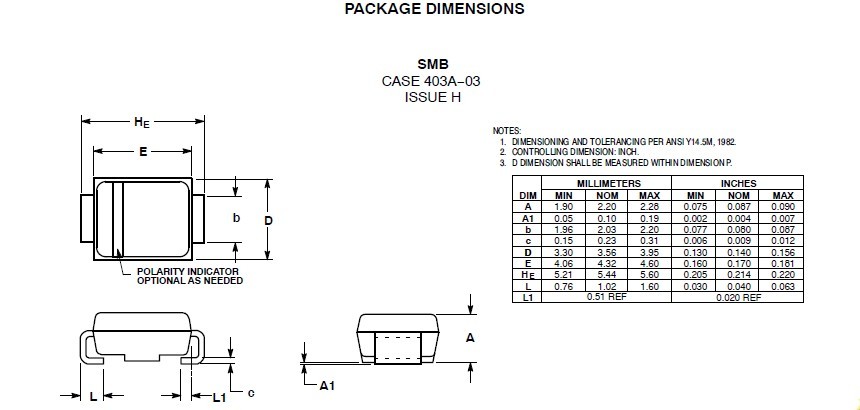

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

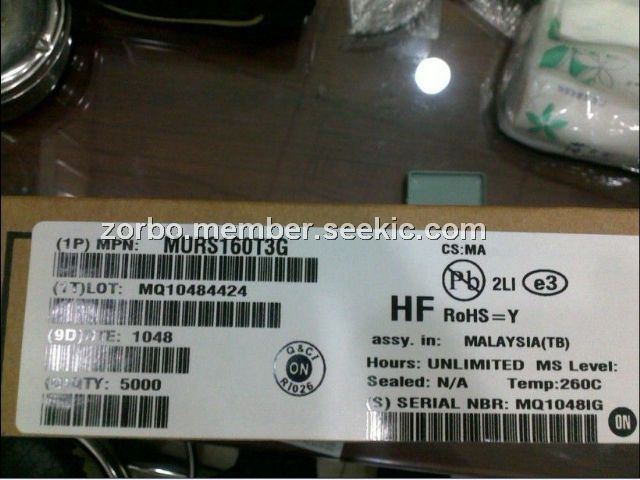

 MURS160T3G |
ON Semiconductor |
Rectifiers 600V 1A Ultrafast |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
MURS105T3 |
ON Semiconductor |
Rectifiers 50V 1A Ultrafast |
Data Sheet |
Negotiable |
|
||||||||||||
|
MURS105T3G |
ON Semiconductor |
Rectifiers 50V 1A Ultrafast |
Data Sheet |
|
|
||||||||||||
|
MURS110T3 |
ON Semiconductor |
Rectifiers 100V 1A Ultrafast |
Data Sheet |
Negotiable |
|
||||||||||||
|
MURS110T3G |
ON Semiconductor |
Rectifiers 100V 1A Ultrafast |
Data Sheet |
|
|
||||||||||||
|
MURS115T3 |
ON Semiconductor |
Rectifiers 150V 1A Ultrafast |
Data Sheet |
Negotiable |
|
||||||||||||
|
MURS115T3G |
ON Semiconductor |
Rectifiers 150V 1A Ultrafast |
Data Sheet |
|
|
||||||||||||
