Product Summary
The S-80927CNMC is a high-precision voltage detector developed using CMOS process. The detection voltage is fixed internally with an accuracy of ±2.0 %. A time delayed reset can be accomplished with the addition of an external capacitor. Two output forms, Nch open-drain and CMOS output, are available. The applications of the S-80927CNMC include Power supply monitor for portable equipment such as notebook PCs, digital still cameras, PDAs and cellular phones, Constant voltage power monitor for cameras, video equipment and communication equipment, Power monitor and reset for CPUs and microcomputers.
Parametrics
S-80927CNMC absolute maximum ratings: (1)Power supply voltage, VDD-VSS: 12 V; (2)CD pin input voltage, VCD: VSS -0.3 to VDD +0.3V; (3)Output voltage, Nch open-drain output products, VOUT: VSS -0.3 to VSS +12V; (4)CMOS output products, VOUT: VSS -0.3 to VDD +0.3V; (5)Output current, IOUT: 50 mA; (6)Power dissipation, PD: 250 (When not mounted on board)mW; 600mW; (7)Operating ambient temperature, Topr: -40 to +85℃; (8)Storage temperature, Tstg: -40 to +125℃.
Features
S-80927CNMC features: (1)Ultra-low current consumption 1.0 μA typ. (Detection voltage≤1.4 V, at VDD = 2.0 V); (2)1.1μA typ. (Detection voltage ≥ 1.5 V, at VDD = 3.5 V); (3)High-precision detection voltage ±2.0 %; (4)Operating voltage range 0.7 V to 10.0 V; (5)Hysteresis characteristics 5 % typ.; (6)Detection voltage 1.3 V to 6.0 V (0.1 V step); (7)Output forms Nch open-drain output (Active Low) CMOS output (Active Low); (8)Lead-free products.

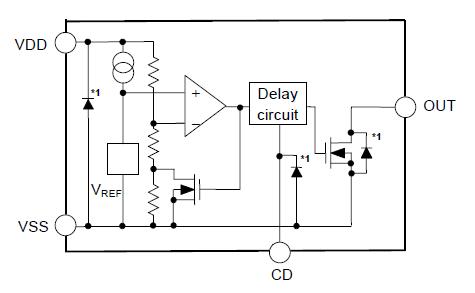

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
S-80927CNMC-G8X-T2 |
Seiko Instruments |
Voltage Detectors / Monitors 2.7V 1.2uA N-Ch Open |
Data Sheet |
Negotiable |
|
|||||
S-80927CNMC-G8XT2G |
Seiko Instruments |
Voltage Detectors / Monitors 2.7V 1.2uA N-Ch Open |
Data Sheet |
Negotiable |
|
