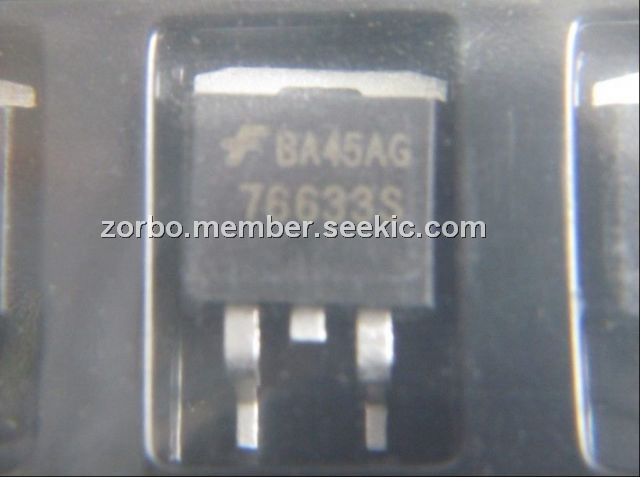

The HUF76633S3S is a 38A, 100V, 0.036 Ohm, N-Channel, Logic Level UltraFET Power MOSFET.
Parametrics
HUF76633S3S absolute maximum ratings: (1)Drain to Source Voltage VDSS: 100 V; (2)Drain to Gate Voltage (RGS = 20kΩ) VDGR: 100 V; (3)Gate to Source Voltage VGS: ±16 V; (4)Drain Current Continuous (TC = 25oC, VGS = 5V) ID: 38A; (5)Power Dissipation PD: 145W; Derate Above 25℃: 0.97W/℃; (6)Operating and Storage Temperature TJ, TSTG: -55 to 175 ℃; (7)Maximum Temperature for Soldering Leads at 0.063in (1.6mm) from Case for 10s TL: 300℃.
Features
HUF76633S3S features: (1)Ultra Low On-Resistance: rDS(ON) = 0.035Ω VGS = 10V; rDS(ON) = 0.036Ω VGS = 5V; (2)Simulation Models: Temperature Compensated PSPICE and SABER Electrical Models; Spice and SABER Thermal Impedance Models; (3)Peak Current vs Pulse Width Curve; (4)UIS Rating Curve; (5)Switching Time vs RGS Curves.
Diagrams
